Introduction
Logic gates are basic parts in the domain of computerized gadgets. They are the structure obstructs that structure the underpinning of computerized circuits, empowering the production of complicated computational frameworks. This article plans to demystify rationale doors, investigating their sorts, capabilities, and applications, and giving a thorough manual for anyone with any interest in the field of computerized hardware.
What Are Logic Gates?
Logic gates are electronic gadgets that carry out essential consistent roles in view of at least one parallel data sources, creating a solitary paired yield. These doors work on the standards of Boolean variable based math and are fundamental in planning computerized circuits. By manipulating binary signals, logic gates enable devices to perform tasks ranging from simple arithmetic to complex decision-making processes.
Types of Logic Gates
There are a few fundamental kinds of rationale doors, each with an extraordinary capability and image. Here, we’ll investigate the most widely recognized ones:
AND Gate
- Symbol and Truth Table: The AND door yields a high sign (1) provided that every one of its bits of feedbacks are high. Its image is a D-molded figure with numerous information sources meeting into a solitary result. Reality table for a two-information AND door is as per the following:
A | B | Output |
---|---|---|
0 | 0 | 0 |
0 | 1 | 0 |
1 | 0 | 0 |
1 | 1 | 1 |
- Practical Applications: Used in situations where multiple conditions must be met simultaneously, such as in safety systems and control mechanisms.
OR Gate
- Symbol and Truth Table: The OR gate outputs a high signal if at least one input is high. Its symbol is a curved line converging into a single output. The truth table is:
A | B | Output |
---|---|---|
0 | 0 | 0 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 1 |
- Practical Applications: Common in circuits where multiple paths can lead to a single outcome, like in lighting systems.
NOT Gate
- Symbol and Truth Table: The NOT gate, or inverter, outputs the opposite of the input signal. Its symbol is a triangle with a small circle at the output. The truth table is:
A | Output |
---|---|
0 | 1 |
1 | 0 |
- Practical Applications: Used to invert signals, essential in binary operations and computing.
NAND Gate
- Symbol and Truth Table: The NAND gate outputs a low signal only if all inputs are high. Its symbol is similar to the AND gate but with a small circle at the output. The truth table is:
A | B | Output |
---|---|---|
0 | 0 | 1 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 0 |
- Practical Applications: Widely used in digital logic circuits due to its ability to create any other logic gate when combined appropriately.
NOR Gate
- Symbol and Truth Table: The NOR gate outputs a high signal only if all inputs are low. Its symbol is similar to the OR gate but with a small circle at the output. The truth table is:
A | B | Output |
---|---|---|
0 | 0 | 1 |
0 | 1 | 0 |
1 | 0 | 0 |
1 | 1 | 0 |
- Practical Applications: Used in digital logic circuits to perform logical NOR operations.
XOR Gate
- Symbol and Truth Table: The XOR (exclusive OR) door yields a high sign if by some stroke of good luck one of the sources of info is high. Its symbol is an OR gate with an additional curved line. The truth table is:
A | B | Output |
---|---|---|
0 | 0 | 0 |
0 | 1 | 1 |
1 | 0 | 1 |
1 | 1 | 0 |
- Practical Applications: Used in circuits where exclusive conditions are required, such as in error detection and correction systems.
XNOR Gate
- Symbol and Truth Table: The XNOR (exclusive NOR) door yields a high sign in the event that the data sources are equivalent. Its image is a XOR entryway with a little circle at the result. The truth table is:
A | B | Output |
---|---|---|
0 | 0 | 1 |
0 | 1 | 0 |
1 | 0 | 0 |
1 | 1 | 1 |
- Practical Applications: Used in parity checkers and digital comparators.
Combinational Logic Circuits
Combinational logic circuits comprise of rationale doors whose results are resolved exclusively by the ongoing data sources. Models incorporate adders, multiplexers, and encoders.
Sequential Logic Circuits
Dissimilar to combinational circuits, consecutive rationale circuits have yields that rely upon both current and past sources of info, consolidating memory components. Models incorporate flip-slumps, counters, and shift registers. These circuits are essential for tasks requiring storage and timing, such as in clocks and memory units.
Boolean Algebra and Logic Gates
Boolean variable based math gives the numerical system to examining and planning rationale circuits. Boolean articulations address the connections among information sources and results of rationale doors. For instance, the articulation A·B addresses an AND operation, while A + B addresses an OR operation. Understanding Boolean variable based math is critical to rearranging and streamlining advanced circuits.
Truth Tables
Truth tables list all conceivable information blends and their relating yields for a rationale door. They are important instruments for understanding and planning rationale circuits. For each kind of door, reality table layouts the normal way of behaving, filling in as a source of perspective for circuit creators.
Logic Gate Symbols

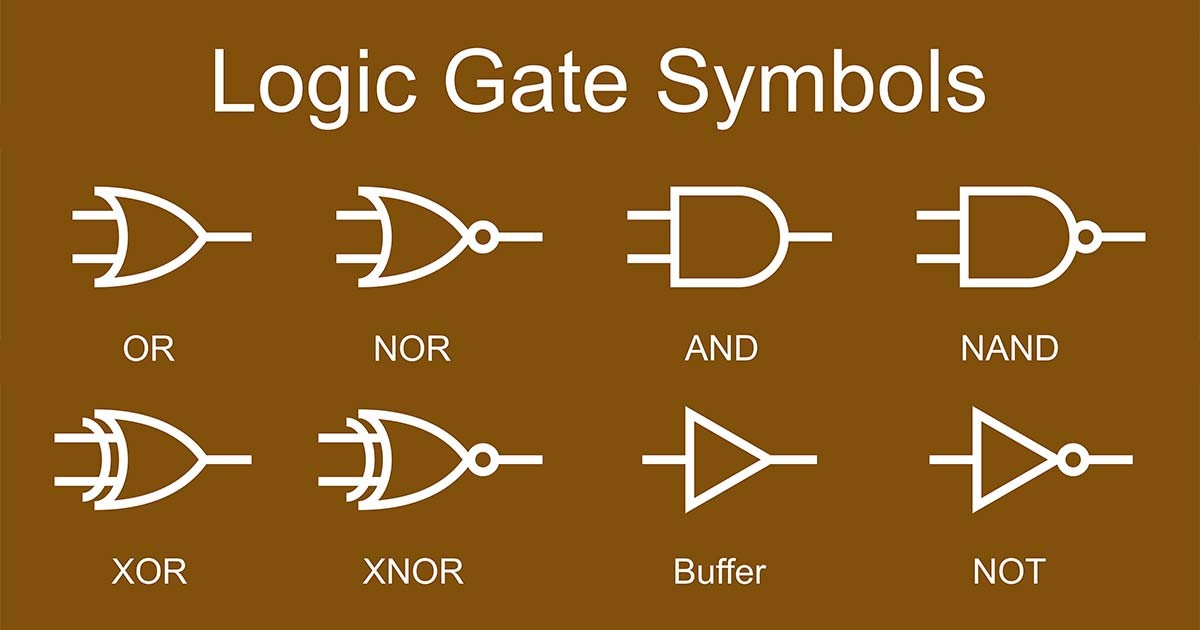

Standard symbols are used in circuit diagrams to represent different logic gates. The American and international symbols differ slightly but convey the same functions. Familiarity with these symbols is essential for reading and creating circuit diagrams.
Practical Applications of Logic Gates
Logic gates are pervasive in present day innovation. They are tracked down in PCs, cell phones, and different other electronic gadgets. From basic dynamic cycles to complex computational undertakings, rationale doors are indispensable to the usefulness of advanced frameworks.
Building Complex Circuits with Logic Gates
By consolidating numerous rationale doors, complex circuits can be worked to perform modern activities. Models incorporate arithmetic logic units (ALUs) in processors and digital signal processing(DSP) circuits. Understanding how to consolidate entryways actually is critical for cutting edge advanced plan.
Integrated Circuits and Logic Gates
Integrated circuits (ICs) integrate various rationale doors into a solitary chip, improving execution and diminishing size. ICs are the foundation of present day hardware, empowering the making of minimized and strong gadgets. Rationale doors inside ICs play out various capabilities, from essential rationale activities to complex information handling.
Digital vs. Analog Circuits
Digital circuits utilize discrete voltage levels to address paired information, while simple circuits utilize constant voltage levels. Logic gates are principal to digital circuits, empowering exact control and control of parallel signs. Understanding the distinctions among computerized and simple circuits helps in choosing the fitting innovation for a given application.
Simulation and Testing of Logic Circuits
Simulation tools and programming, like SPICE and Verilog, permit fashioners to test and check rationale circuits before actual execution. Testing guarantees that circuits proceed true to form and distinguishes and right issues from the get-go in the plan cycle.
Challenges in Logic Gate Design
Designing rationale doors includes defeating different difficulties, including power utilization, speed, and commotion insusceptibility. Progressions in semiconductor innovation keep on tending to these difficulties, pushing the limits of what is conceivable in digital electronics.
Learning and Experimenting with Logic Gates
Instructive assets, like reading material, online courses, and intuitive reenactments, give important learning valuable open doors to those keen on rationale entryways. Do-It-Yourself activities and packs offer involved insight, assisting fans with applying hypothetical information to commonsense applications.
Conclusion
Logic gates are the central structure blocks of advanced circuits, supporting the usefulness of endless electronic gadgets. Grasping their sorts, capabilities, and applications is fundamental for anyone with any interest at all in computerized hardware. By demystifying rationale entryways, we gain a more profound enthusiasm for the innovation that drives our computerized world.
FAQs
- What are the most fundamental logic gates?
- The most basic logic gates are AND, OR, and NOT gates.
- How do logic gates affect computer performance?
- Logic gates perform the basic operations that enable computational processes, directly impacting the speed and efficiency of a computer.
- Could rationale doors be utilized in analog circuits?
- Logic gates are essentially utilized in advanced circuits, however they can connect with simple circuits in contradicting message plans.
- What is the contrast between a logic gates and a transistor?
- A transistor is a semiconductor gadget used to enhance or switch electronic signs, while a rationale entryway is a blend of semiconductors organized to play out a particular rationale capability.
- How would I begin finding out about logic gates?
- Begin with basic electronics textbooks, online tutorials, and interactive simulations to understand the principles and applications of logic gates.
